Raspberry Pi Coding in Go: Traffic Lights

Simon Prickett Simon Prickett Follow May 24, 2018 · 9 mins read
Raspberry Pi Coding in Go: Traffic Lights
Share this

I’ve been learning the Go programming language recently. As an exercise, I decided to revisit a past article that looked at working with traffic lights on the Raspberry Pi in Python in order to rewrite it in Go. To make this a standalone guide, there will be some re-use of content from the prior article here. Since writing this article, I’ve also written up the same exercise using Swift (Swift version), Node.js (read about that here), Node RED (try here), Java (try here), Bash scripting (Bash article), C (check it out here) and also for Arduino.

Shopping List

To try this out, you will need the following (links here mostly go to Adafruit, UK customers may want to consider Pimoroni as a UK based alternative, Amazon has most if not all of this stuff too):

  • A Raspberry Pi (I’ll use the Pi 3 Model B here, but any model with GPIO pins will work — if you want to use the Pi Zero you’ll need to solder some headers onto it). I’m going to assume you have a Pi 2 or 3 with 40 pins
  • A power supply for your Pi (Raspberry Pi 4 requires a different USB C power supply)
  • Some sort of case is probably a good idea to protect the Pi (but you’ll need to leave the lid off to expose the GPIO pins to connect your lights to)
  • A Micro SD card to install your operating system on (or get one with the OS pre-installed). If you want to install the operating system yourself, you’ll need a Mac, PC, Linux machine with an SD card reader
  • A set of traffic lights from Low Voltage Labs (the two pack is good value)
  • Any USB keyboard to type on the Pi, you might want a mouse too
  • Any HDMI display to show output from the Pi

Attaching the Traffic Lights

The Low Voltage Labs traffic lights connect to the Pi using four pins. One of these needs to be ground, the other three being actual GPIO pins used to control each of the individual LEDs.

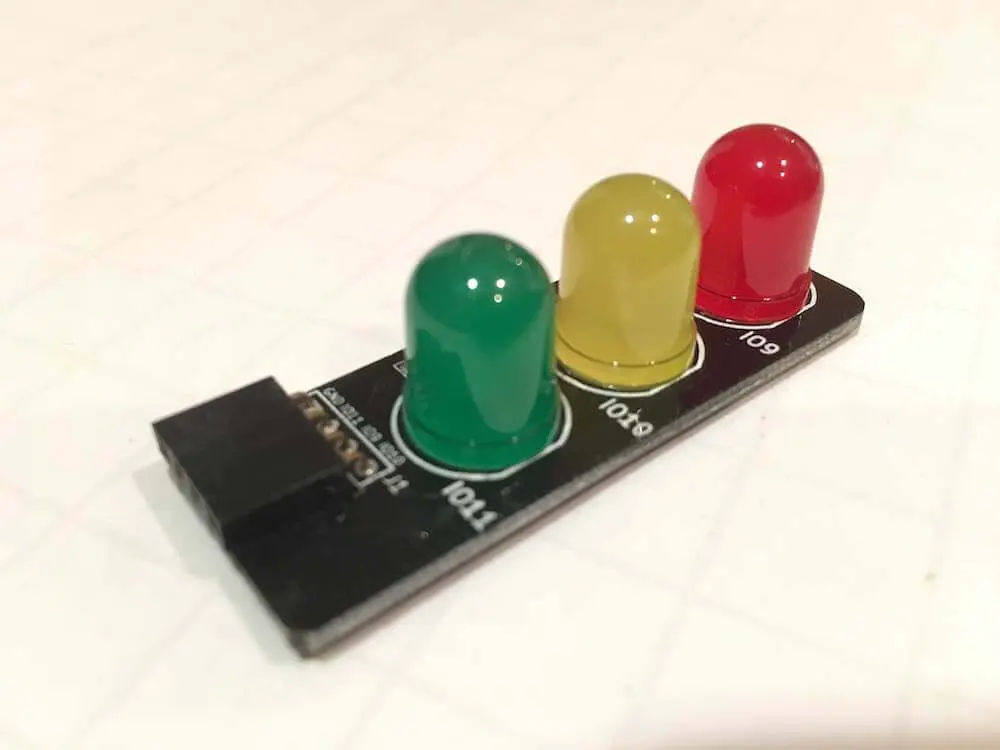

Low Voltage Labs Traffic Lights
Low Voltage Labs Traffic Lights.

Before powering up the Pi, attach the traffic lights so that the pins connect to the GPIO pins highlighted in red:

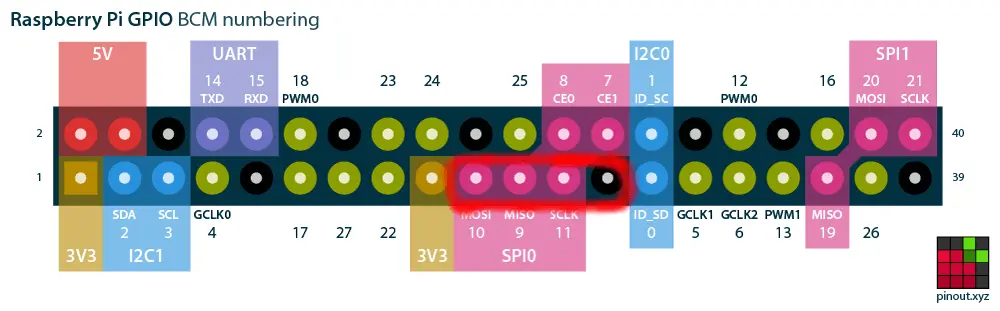

GPIO Pin Diagram
GPIO Pin Diagram.

When you’re done it’s going to look something like this… (an easy way to make sure you have it right is to locate the lights on the left hand row of pins as you look at the Pi with the USB ports to the bottom, then count 8 pins up and attach the lights there).

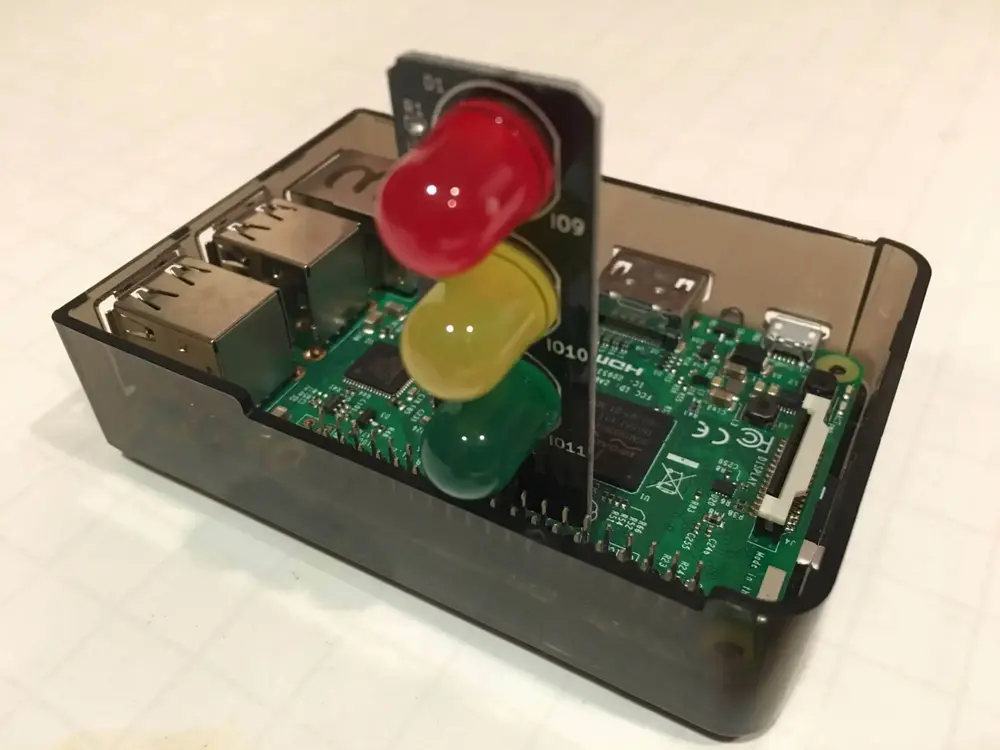

GPIO pins with lights attached.
GPIO pins with lights attached.
GPIO pins with lights attached.
GPIO pins with lights attached.

Don’t turn the Pi on yet, you’ll need to prepare an operating system image for it first…

Operating System Setup

Install the Raspbian OS which can be downloaded from the official Raspberry Pi site. You can also find an excellent installation guide there should you need help.

Once you’ve got the operating system installed, make sure you can login, and have a working wired or wifi internet connection.

Now you can go ahead and start turning lights on and off!

Installing Go

Go code can be compiled and distributed as a binary, it can also be cross compiled (where the compiler generates a binary to run on a different operating system / processor architecture than the one it was built on). We’ll look at both options here so will need to install the Go distribution on the Pi as it’s not included with Raspbian Lite.

Go installation is a simple matter of downloading the distribution (check here for latest ARM v6 version that the Pi uses), then expanding it into /usr/local:

$ wget https://storage.googleapis.com/golang/go1.10.1.linux-armv6l.tar.gz
$ sudo tar -C /usr/local -xvf go1.10.1.linux-armv6l.tar.gz

Amend your PATH by editing ~/.profile and adding the following at the bottom:

PATH=$PATH:/usr/local/go/bin

Having saved your profile, source it to get the new value for path in your current terminal session:

$ . ~/.profile

Clean up the downloaded archive to save space on the micro SD card:

$ rm go1.10.1.linux-armv6l.tar.gz

Finally, verify Go was installed by checking its version:

$ go version

go version go1.10.1 linux/arm

(Official Go installation instructions can be found here).

Installing Dependencies

We’ll also need git, which isn’t installed with Raspbian Lite but is simple to add:

$ sudo apt-get install git
$ git --version
git version 2.11.0

We’ll also use a Go package for accessing the GPIO pins on the Pi. This is installed with the go get command:

$ go get github.com/stianeikeland/go-rpio/...

The package will be installed to:

~/go/src/github.com/stianeikeland/go-rpio

If you’d prefer your Go code to live somewhere else on the filesystem, you’ll want to look at setting your GOPATH environment variable to specify an alternative location (see documentation).

Programming the Traffic Lights

Similarly, go get my example code that uses the go-rpio package to make the lights work:

$ go get github.com/simonprickett/gopitrafficlights/...

We’ve now got everything we need to start seeing some action, so without further ado…

$ cd ~/go/src/github.com/simonprickett/gopitrafficlights
$ go run main.go

If the lights are connected to the correct GPIO pins, they should start to flash on and off in the UK traffic light pattern (red, red + amber, green, amber, red). If you don’t see anything, make sure that you have the lights connected to the right pins.

Lights installed and working.
Lights installed and working.

You can also compile the code to a binary file, then run it:

$ go build -o trafficlights
$ ./trafficlights

To exit, press Ctrl + C. This will cause all of the lights to turn off, and the program will exit.

How it Works

Here’s a brief walkthrough of the complete source code…

The program checks that it can open the Pi’s GPIO pins at line 13. If it can’t, it will exit. Assuming that’s successful lines 19–26 assign GPIO pins 9, 10 and 11 to more meaningful variable names and tell the Pi to use them as output pins.

Lines 28–39 set up a channel for the SIGTERM signal… this signal is sent to the program whenever the user gets bored of watching the lights and hits Ctrl+C. The program sets up a channel that will be notified when the termination signal occurs, then runs a goroutine at line 31. The goroutine runs concurrently with the rest of the program, and waits for a message to be sent to the channel. When it receives one, the program is attempting to exit because Ctrl+C was pressed. The code in the goroutine then turns off all of the lights and exits cleanly.

As part of cleanup we also free up resources associated with the GPIO pins at line 39, using the defer keyword to ensure that it will happen whenever the program exits.

Each light turns on when its associated pin it set high, and off when set low. Lines 42–44 make sure that all the lights are off to begin with, just in case something else was using the GPIO pins before and left them on.

At line 47, the program enters an infinite loop in which it turns the lights on .High() and off .Low() in the right sequence for a traffic light. In between phases, “time.Sleep” pauses execution.

Cross Compiling

One of the features of the Go toolset is that it allows you to cross compile code to binary executables. This means that you can create a binary for a platform other than the one you’re compiling the code on.

Go makes this very simple: for example I can compile the traffic lights example code on my Intel Mac OS computer and output a binary that will run on the ARM based Raspberry Pi running Linux. This is simply a matter of setting some environment variables when compiling:

$ go get github.com/stianeikeland/go-rpio/...
$ go get github.com/simonprickett/gopitrafficlights/...
$ cd ~/go/src/github.com/simonprickett/gopitrafficlights
$ env GOOS=linux GOARCH=arm GOARM=7 go build -o trafficlights

(For a list of possible values for GOOS and GOARCH, see Installing Go from Source)

The resulting trafficlights binary will work on a Raspberry Pi 3, but not on the Mac OS machine that compiled it. If you have an older model Pi you may need to set GOARM to 6. To try it out, FTP the compiled binary trafficlights over to the Pi then start it up with:

$ ./trafficlights

You should see the lights work as before. I’ve put the source code on GitHub for your enjoyment.


I’d love to hear what you’re up to with the Raspberry Pi — find me on Twitter or via the comments here. If you enjoyed this article, please share it far and wide!
